Battery Status Monitoring and BMS Management

PACEEX BMS APP
The PACEEX BMS APP is a tool for real-time monitoring and management of the Battery Management System (BMS).

Key Features of the PACEEX BMS APP

1. Summary / Basic Parameters

Instantly monitor key battery information, including State of Charge (SOC), total voltage, charging/discharging current, temperature, and cycle count.

2. Cell Voltage & Temperature

View detailed voltage and temperature readings for each battery cell to help identify abnormalities or cell imbalances.

Wireless Connectivity
Supports Bluetooth (BLE Local Control) for local configuration and Wi-Fi (Remote Control) for accessing battery data through the cloud.

Parameter Settings

Customize battery operating parameters and communication protocols for inverter compatibility, including Deye, MUST, and other solar energy systems.

Compatible INFOSAT Batteries

• GC R48300

• GC R48100

• LA C16.0-1

The PACEEX BMS APP is designed to monitor and manage the status of the Battery Management System (BMS).

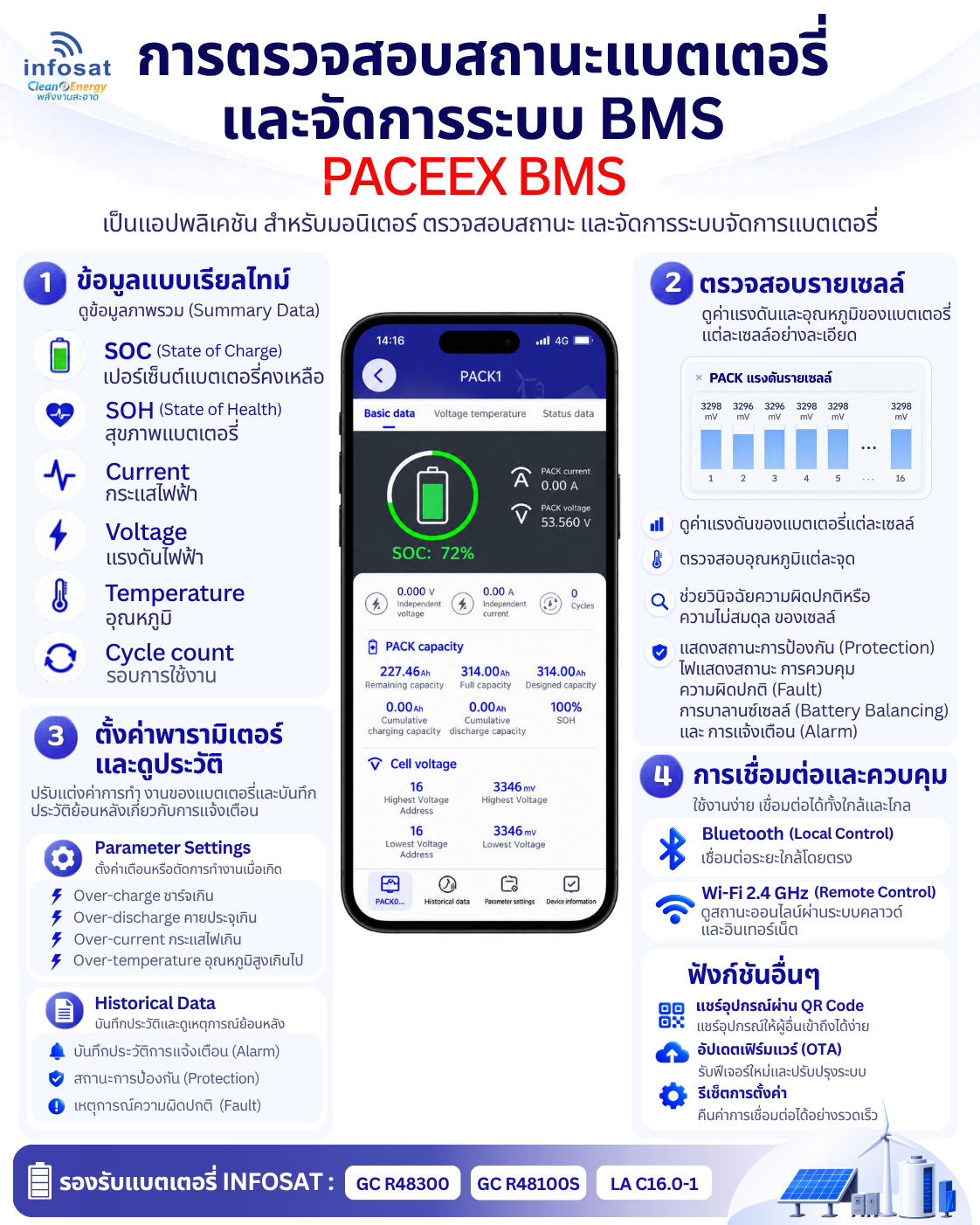

The app interface is divided into four main sections, as follows:

1.Real-time Data
Summary Data

• SOC (State of Charge): Remaining battery capacity (%)

• SOH (State of Health): Battery health status

• Current: Electric current

• Voltage: Voltage level

• Temperature: Temperature

• Cycle Count: Number of charge and discharge cycles


2. Individual Cell Monitoring

Monitor the voltage and temperature of each battery cell in detail to help diagnose abnormalities or cell imbalances.

• View the voltage of each battery cell

• Monitor the temperature at each measurement point

• Identify potential abnormalities or cell imbalances

• Display Protection Status, Indicator Status, Control Status, Fault Status, Battery Balancing Status, and Alarm Notifications.

3. Parameter Settings and Historical Data

Configure battery operating parameters and review historical records of alerts and events.

Parameter Settings

Set warning thresholds or automatic shutdown limits for the following conditions:

• Overcharge: Excessive charging

• Over-discharge: Excessive battery discharge

• Overcurrent: Excessive electric current

• Overtemperature: Excessively high temperature

Historical Data

Record and review past events and system status, including:

• Alarm History

• Protection Status

• Fault Events

4. Connectivity and Control

• Local Control (Bluetooth): Connect directly via Bluetooth without logging in or linking an account. Ideal for monitoring battery data at close range.
• Telecontrol (2.4 GHz Wi-Fi): Monitor battery status remotely via the cloud or internet. Account registration and device binding are required. Supports integration with compatible inverters from major brands such as Deye and Growatt.
• Additional Functions: Share devices with other users via QR code, update firmware over the air (OTA), and reset Wi-Fi settings.
